RangeVision NEO

RangeVision NEO – High-quality 3D scanning is available
to everyone now!

Add to wishlist Adding to wishlist Added to wishlist
Category

Description

RangeVision NEO is an optical scanner with structured light technology. It is reliable and easy to use, connects to a computer via USB 3.0 and HDMI ports, does not require external power and has 2 MP color cameras.

Portable and compact

  • Weighs only 1 kg
  • Easily fits on a desk

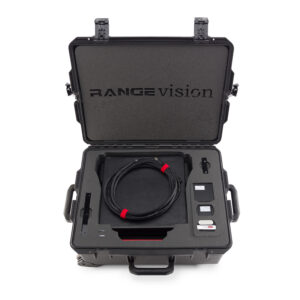

  • Comes in a protective travel case

High-Quality 3D Scanning

  •  Accuracy up to 0.05mm
  • Colour texture capturing

Objects size

  • From 1cm to 1.2m



Applications

Education and science

Training

Research

Virtual tests

Product design

Reverse engineering

Customization

3D documentation

Visualization

Virtual reality

Animation

Hobbies

Replication of objects

Measurement of complex geometry

3D models for 3D printing

Arts and culture

Cultural heritage preservation

Digitization of exhibitions and collections

Restoration

Specifications

Scanning technology structured light
Accuracy, up to

3D resolution, up to

0.05 mm

0.13 mm

Object size

FOV size, mm

from 3 cm to 1.2 m

200 х 150 х 150 mm

Working distance

Ability to capture texture

0.3 m

yes

Cameras resolution 2MP
Modes alignment by markers, by geometry
3D mesh formats OBJ, PLY, STL, WRL, ASCII
Power source for scanner USB
Minimum computer requirements Intel® Core™ i3/i5 1.8 GHz (Broadwell-based),

8 GB, HDMI, USB 3.0, USB 2.0 for a rotary table

Supported OS Windows 7/8.1/10 64bit
Rotary table yes
Platform table diameter 20 cm
Max rotary table load capacity 20 kg / 44 lb
Power source for rotary table 220 V – 12V/1A
Case dimensions 430 х 380 х 155 mm
Weight 1 kg / 2.2 lb
Full package in case weight 5.5 kg / 12.1 lb
